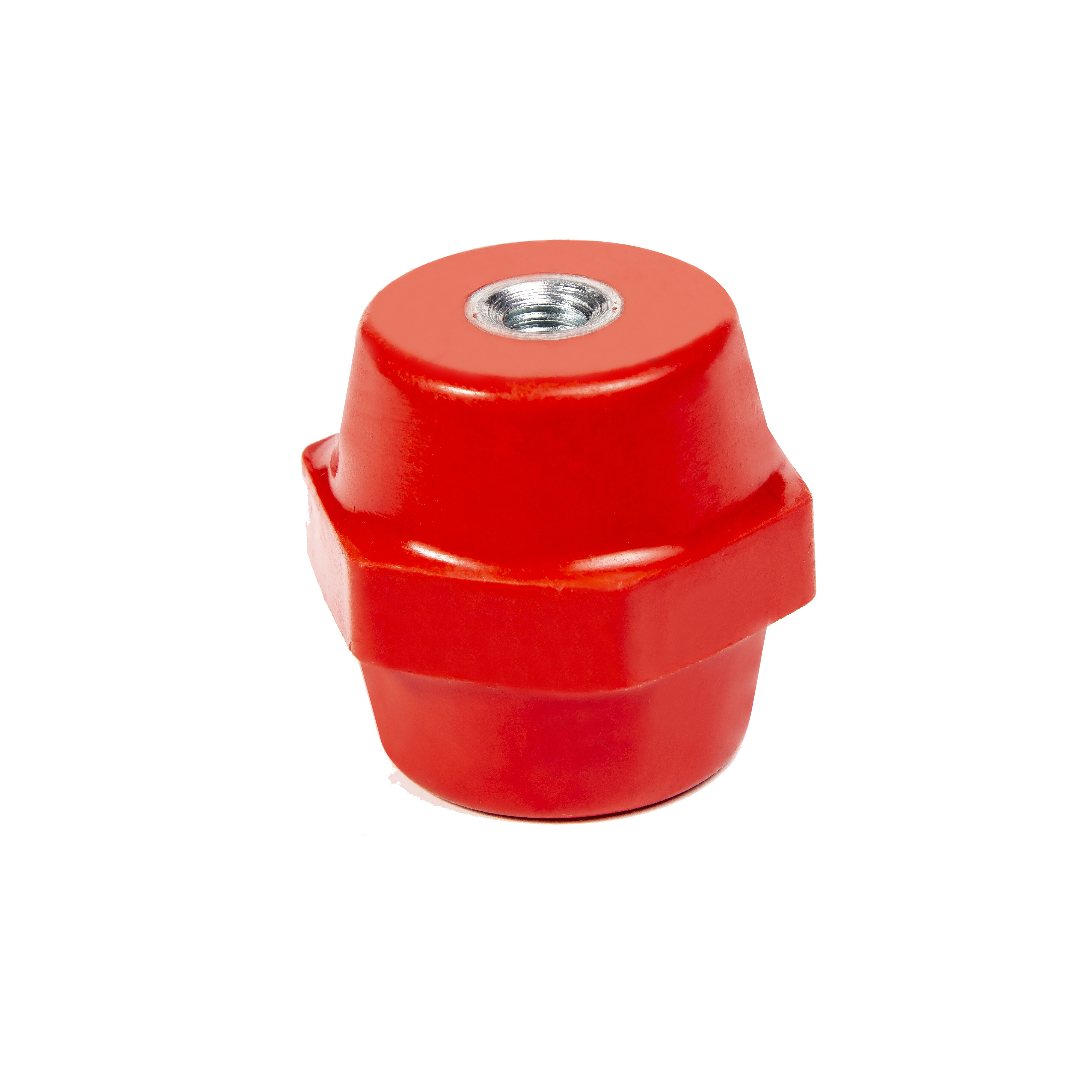

Hexagonal Standoff Insulators

Hexagonal Insulators

Hexagonal Insulators available in both Metric & UNC Threads & in variety of heights & inserts, Male-Female & Male-Male Inserts combination.

Our Insulators are moulded from a flame retardant and track resistance glass reinforced Thermoset Polyester compound recognized to use for current carrying devices under UL Material Recognition No. E249670 & products are itself certified under UL Product Recognition no. E314972.

Technical Specifications

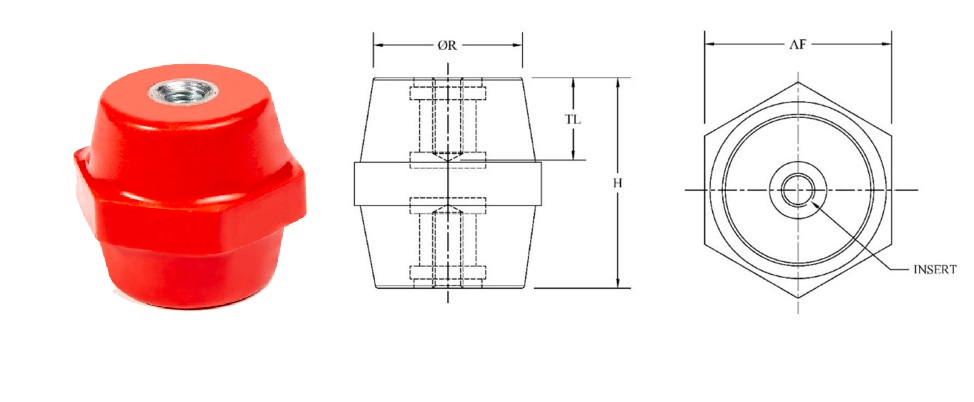

Product Code2D DrawingsHeight[H] (mm)Thread Size*[M]Thread Depth [D] (mm)Cantilever Strength(Kgf)Torque (Kgf-cm)Pulling Strength(Kgf)Breakdown Voltage(KV)Nominal Voltage(AC/DC)Volts
H416H416 DWG16M43.525258015640/800
